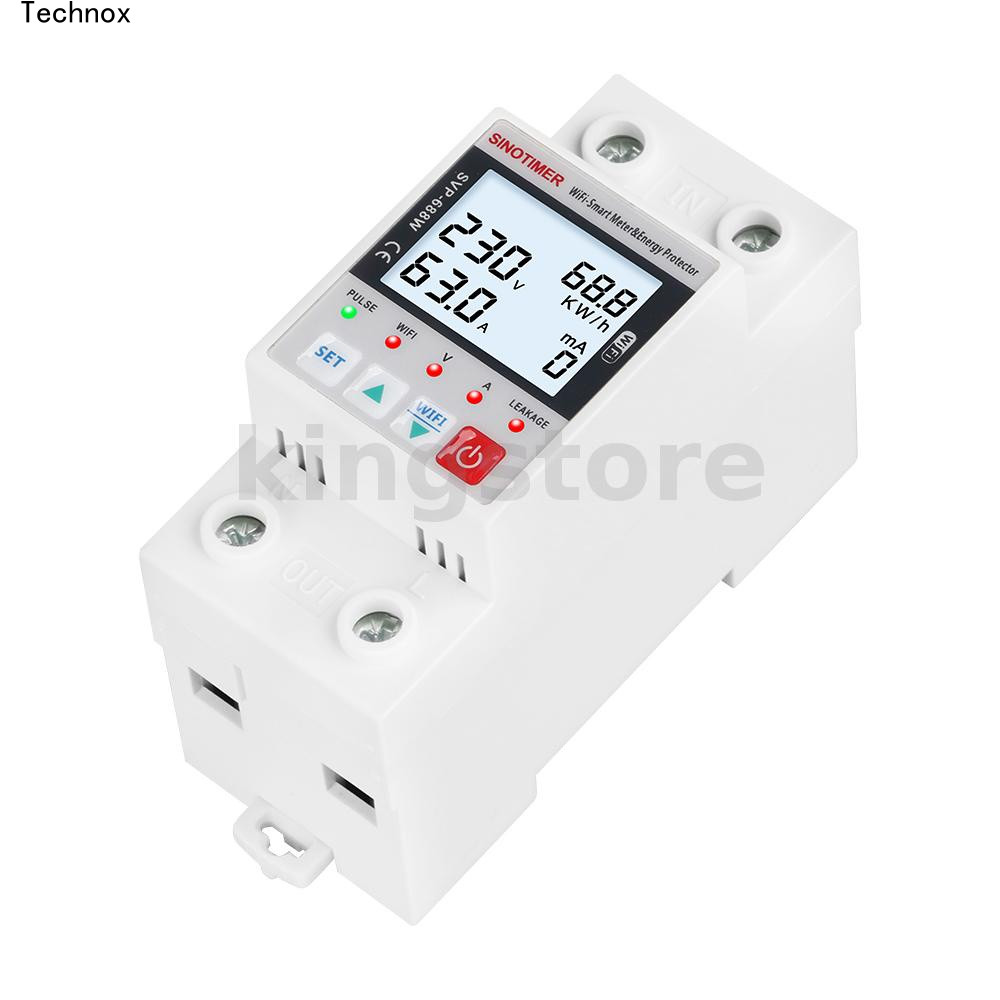

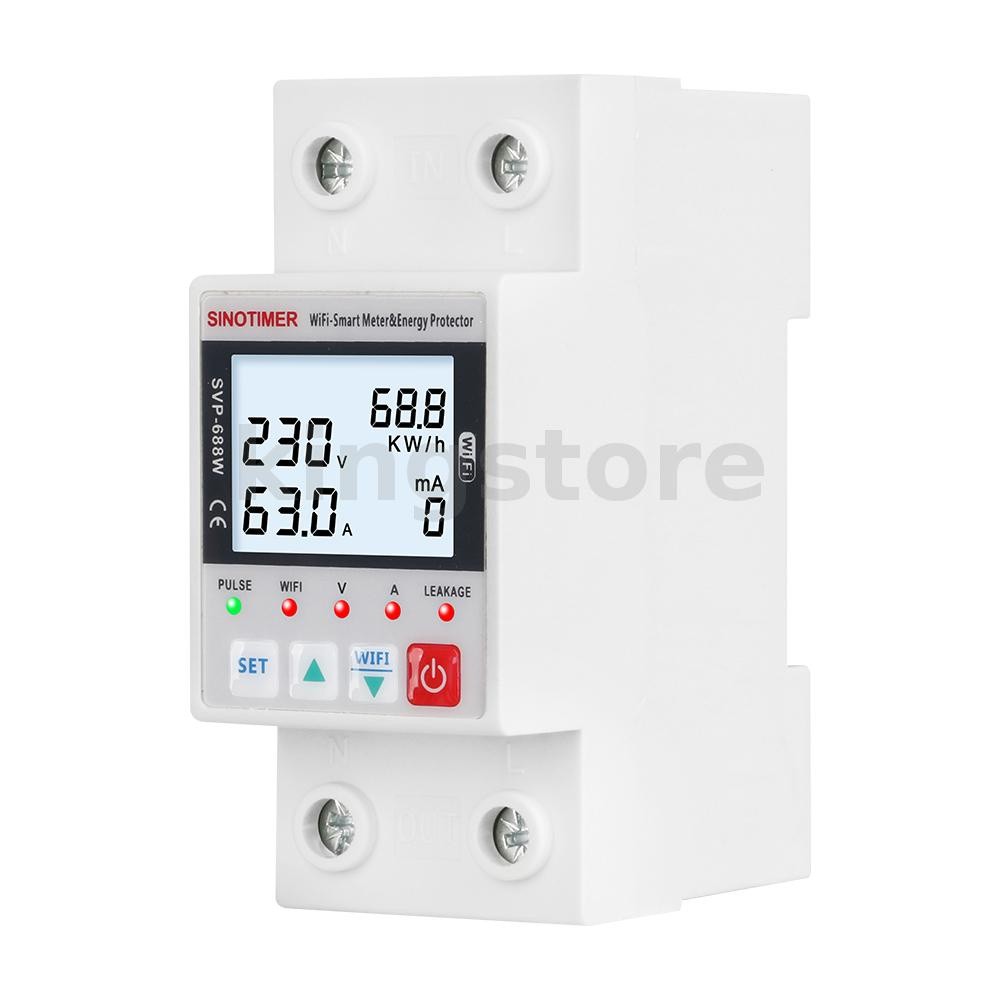

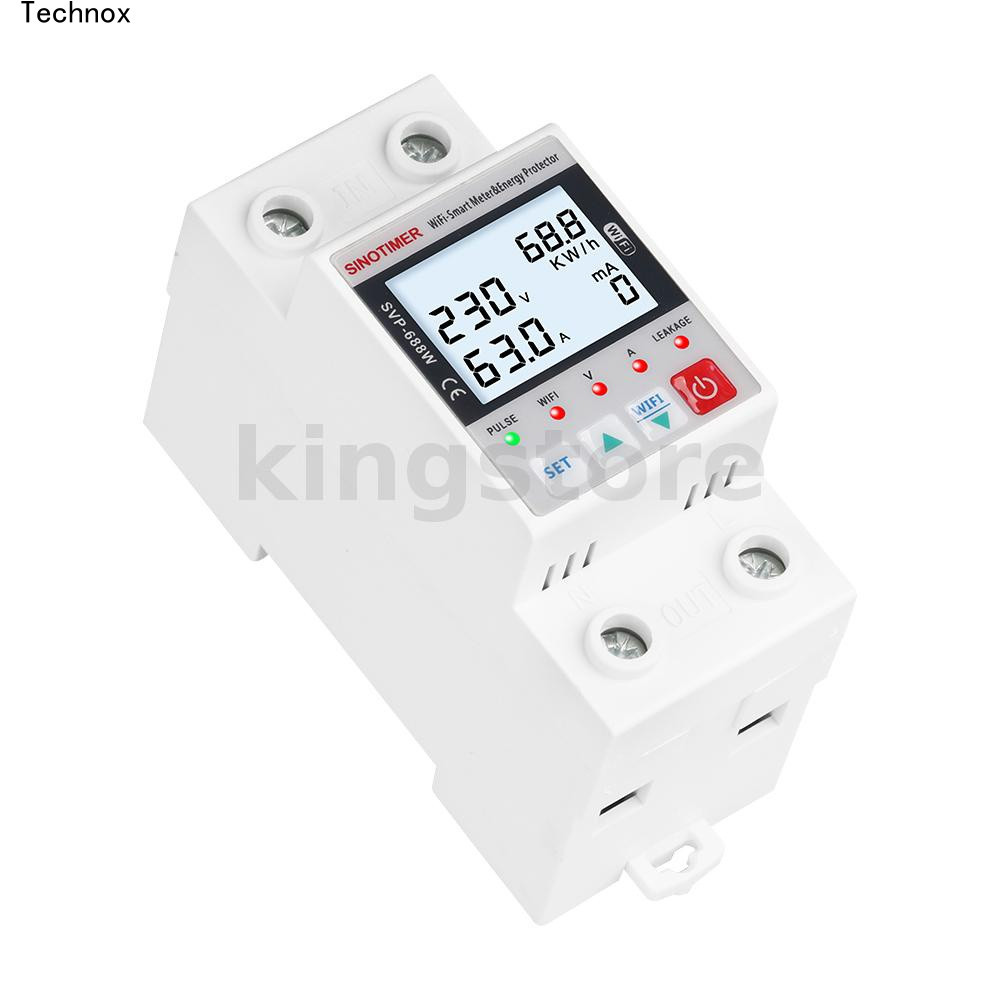

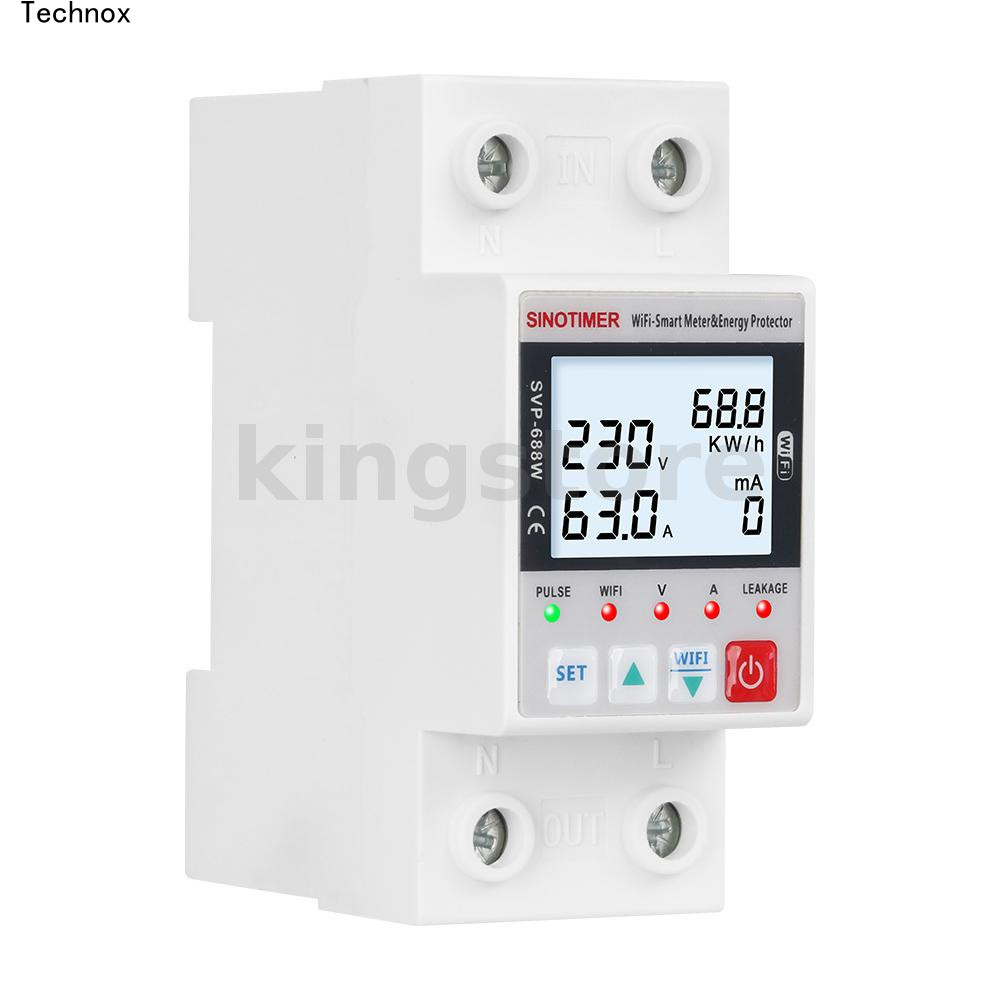

WiFi Connection SVP688 Voltage / Current Measuring Device

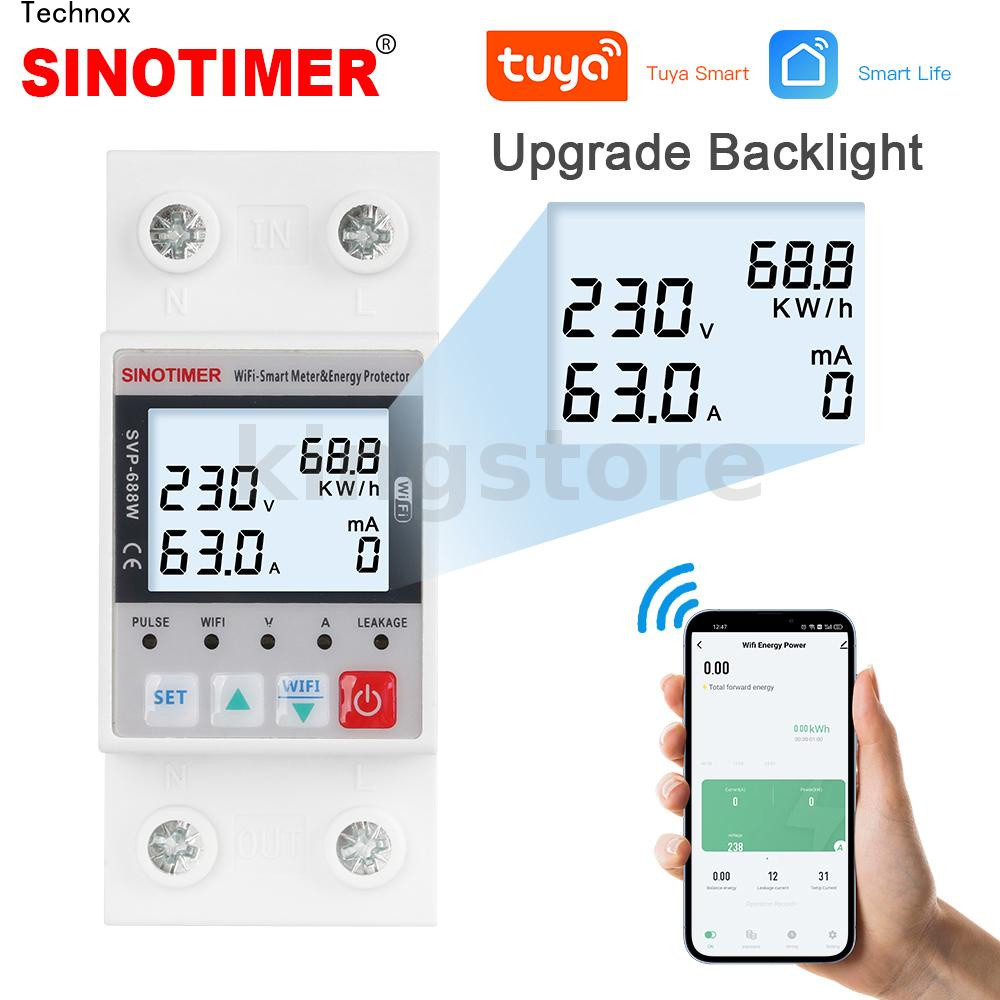

feature Remote control and monitoring - The WiFi Power Meter SVP688 allows you to remotely control ON - AND OFF functionality from anywhere using your smartphone, Always monitor your devices even when you are away Real - time monitoring - Review the current, voltage, leakage, and total kWh consumption directly from your phone. Monitor your energy use and make informed decisions to manage your energy efficiently. Adjustable protective parameters - Customize overvoltage, undervoltage, overcurrent, and leakage protection settings either through the application or directly on the protective unit itself. Voltage protection range - The under-voltage protection range can be adjusted from 145V to 210V (default " 175V "), while over-voltage protection range can be adjusted from 240V to 300V (default " 275V "). Current protection range - An overcurrent protection range can be adjusted from 1A to 63A (default 63A), providing reliable protection for different electrical loads. Electrical leak protection – Enjoy the added safety of electrical leak protection, with a tuning range from 10mA to 99mA (default 50mA). This feature can be turned off if not needed. Reconnection Time and Protection Time - Set the required reconnection time (timed delay) to 10 to 99 seconds (30 second expiration), and adjust the overcurrent and leakage protection time to 1 to 30 seconds (5 expiration). These functions can also be turned off. Overheating Protection - Set the overheating protection range from 10 C to 85 C through the application. This parameter can only be adjusted by the application. Three Timer settings - Choose between timed, countdown, or cycle timing to conveniently manage the operation of your devices. "Technical parameters" Brand: SINOTIMER Model - SVP688 Rated voltage 230VAC Current rating '63A TUYA 'Smartlife'WiFi compatibility leak protection range "10mA - 99mA (adjustable. default " 50mA) Reconnection time (Time Delay)'10 seconds - 99 seconds (adjustable. default'30 seconds Overcurrent and leakage protection period '1 – 30 (adjustable. default '5) Overheating Protection * 10C - 85C (only adjustable application) Timer Mode - Timer Mode, countdown mode, cycle time Options Type' Type A -- no Wi - Fi with light. B 'Wi-Fi with Light Type C has no light Wi - Fi. The package includes“ 1 x Timer the energy metering switch (Type by your choice)
