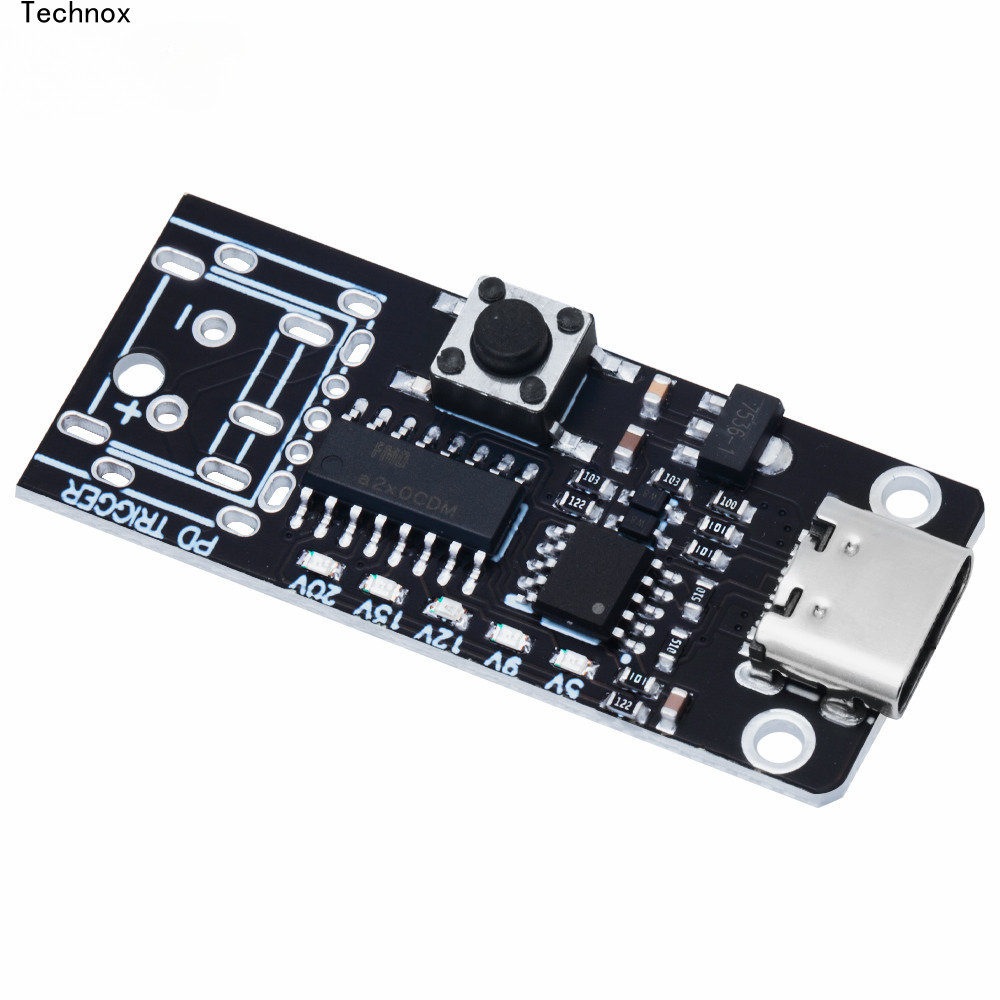

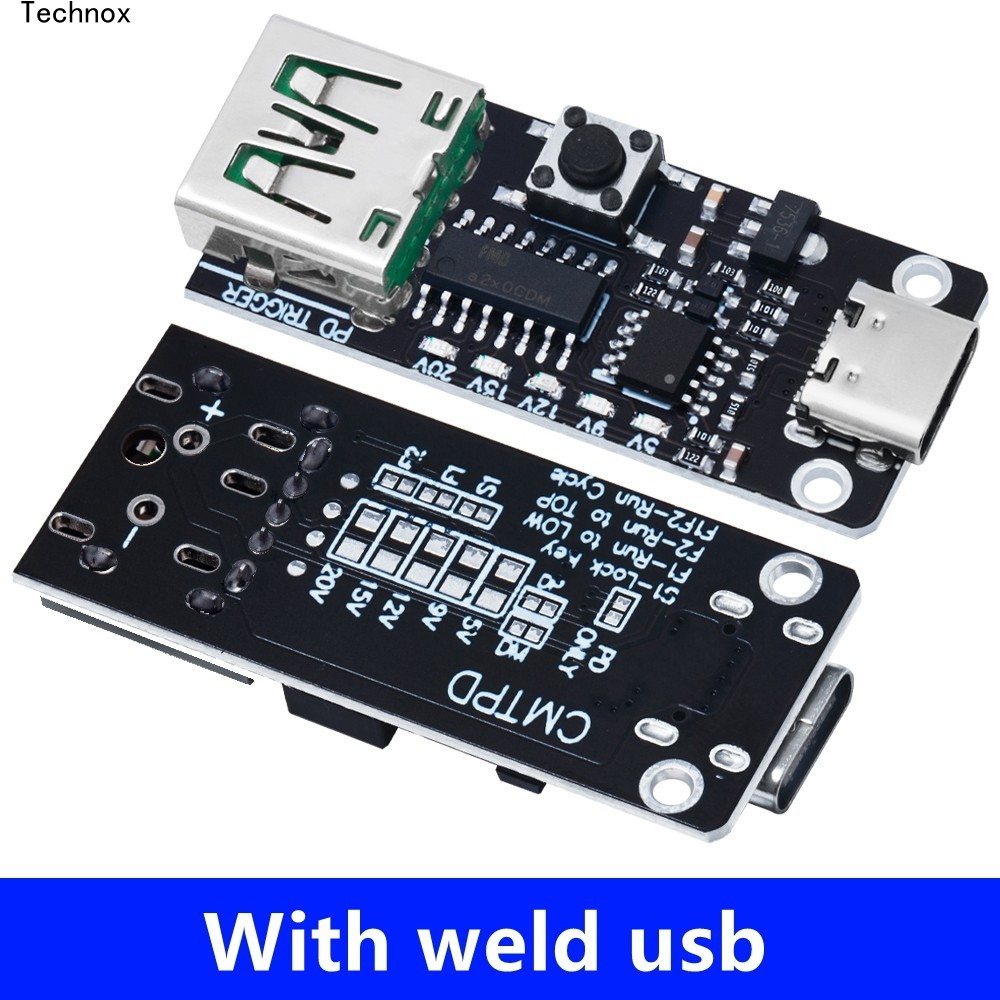

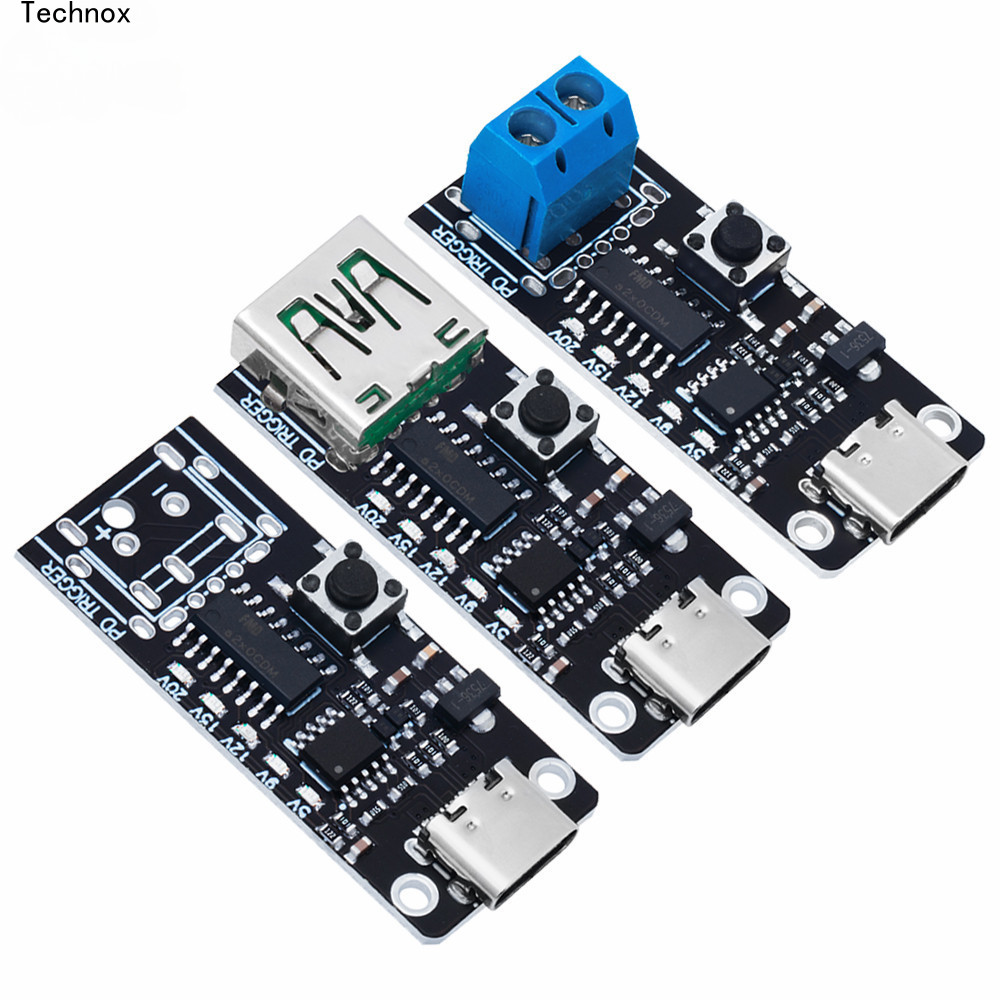

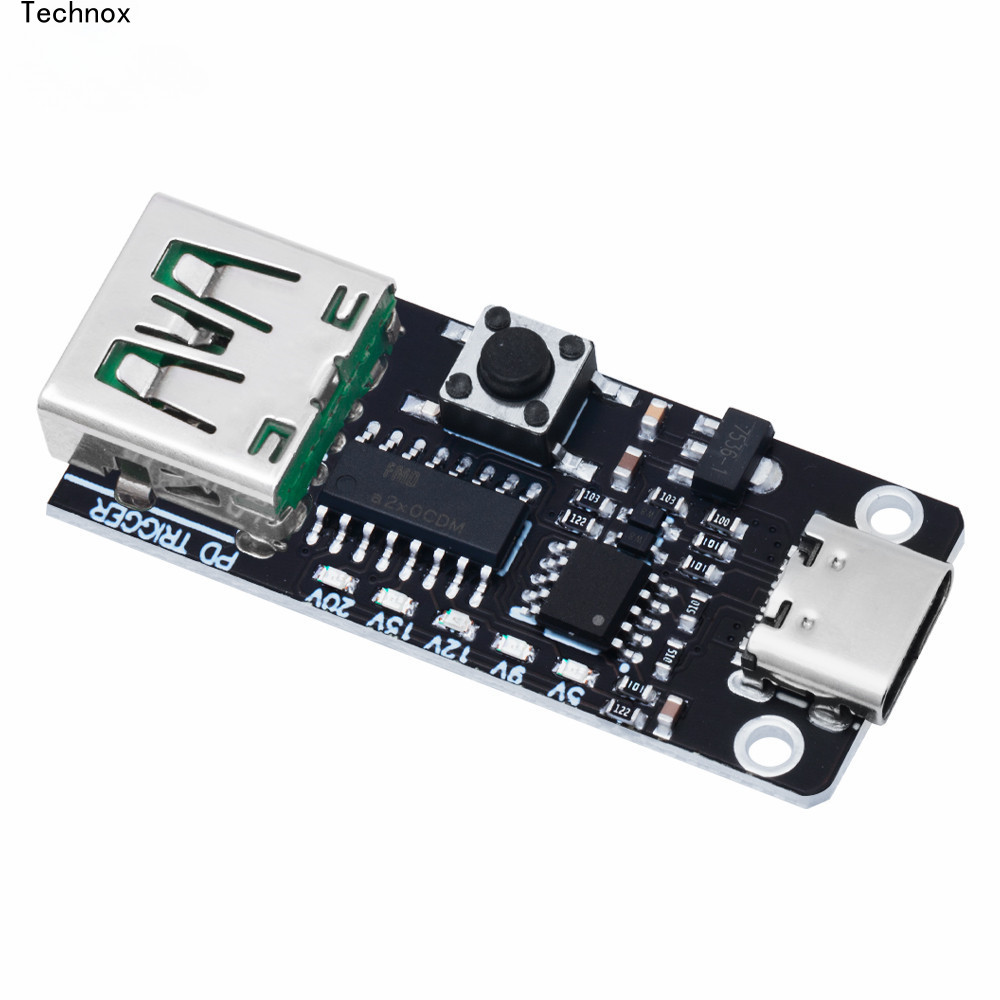

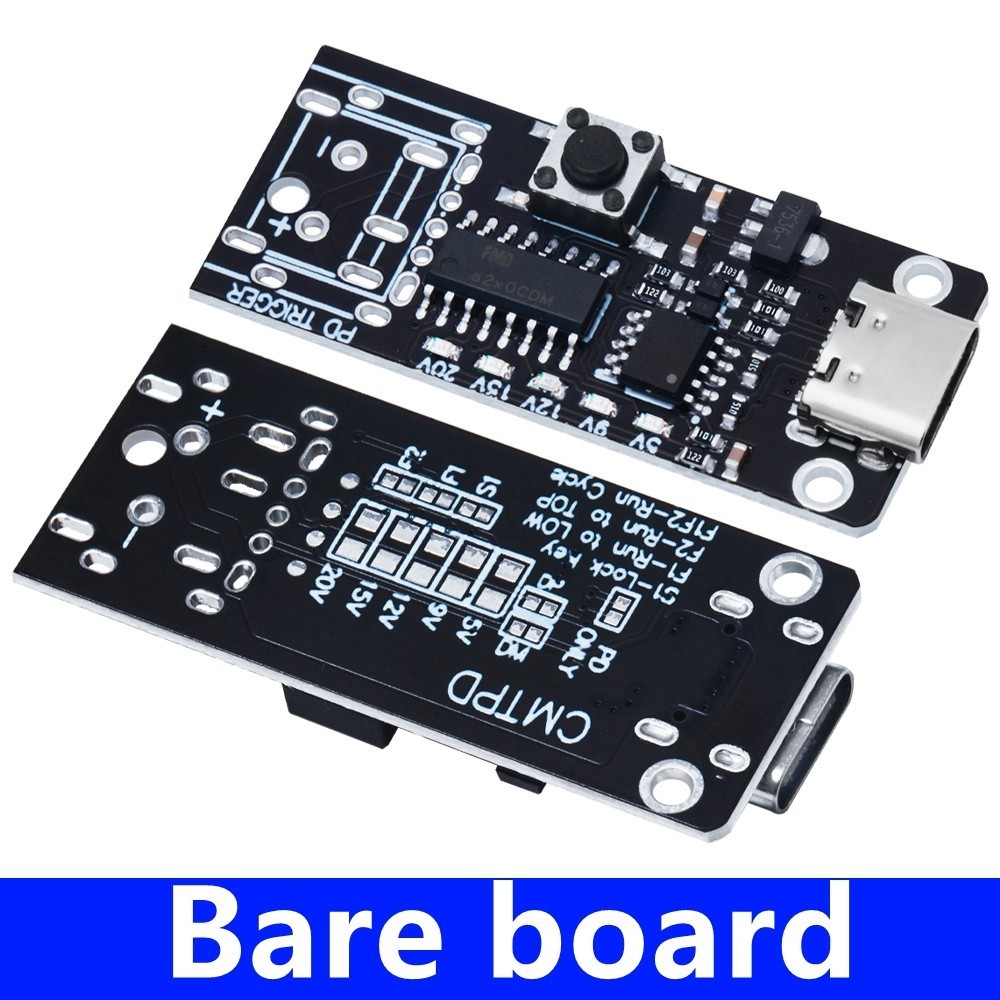

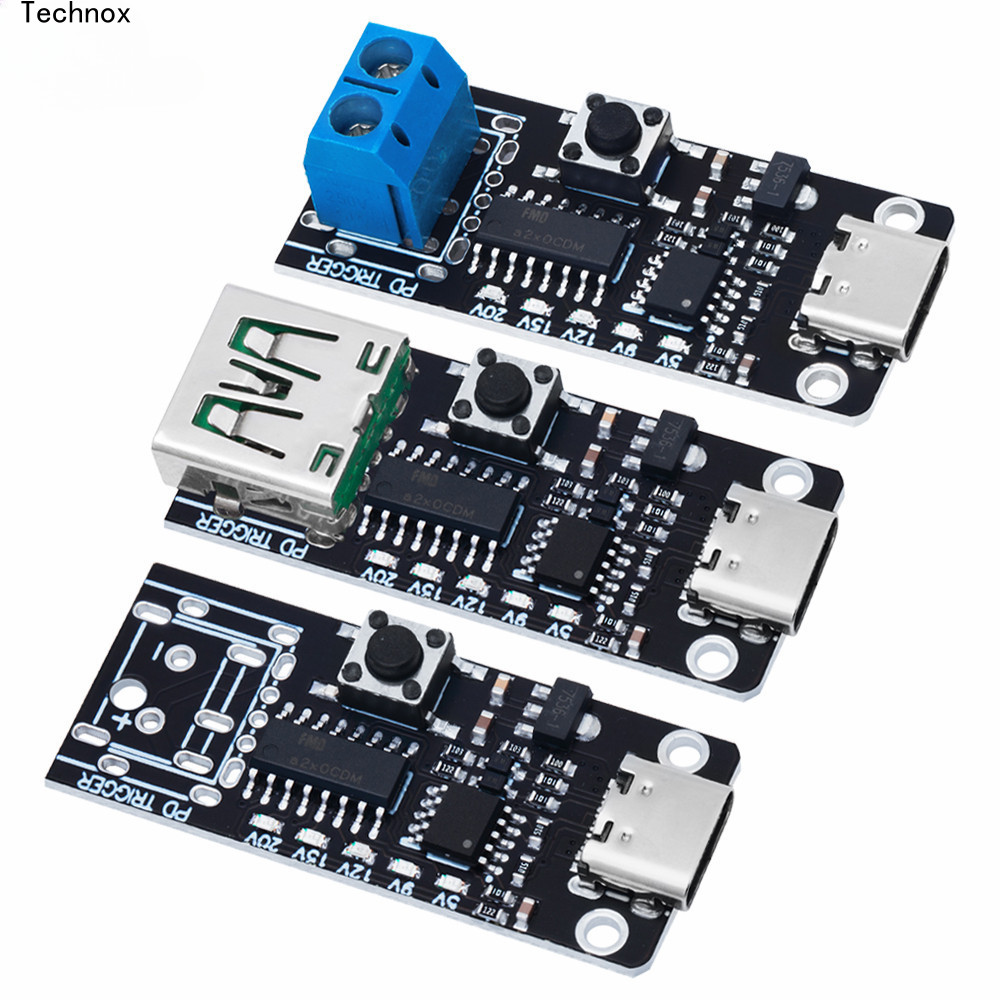

Report project Support for PD3.0, PD2.0 voltage decoy output, QC, FCP, AFC, free mode Switches. You can also set that only PD is supported. Support 5V / 9V / 12V / 20V decoy output (specific ranges depend on your power supply). With key locking, to prevent malfunction (to avoid damaging the loader by setting the wrong voltage) Fast setting 5V / 9V / 12V / 20V, LED indicates output Parameters are saved automatically and the final deception settings are made after the power is on. Extremely low power consumption, high current, supporting 100W output. The maximum output is 20V5A (the actual value depends on your power supply). Type-c is sturdy and durable. Support automatically votes to the highest voltage and holds it, and automatically votes to the highest voltage Then maintain to 5V, infinite loop and other test functions. The test jump time is adjustable. Suitable for aging tests, the module can withstand voltages above 30 volts. Each voltage can be connected externally – a key can be used for rapid switching. Short-circuit Junction PD only: module only supports PD protocol after short circuit. DM and DP short contacts: DM and DP can be exported from the USB after shorting, unless required, Short circuits are not recommended. 5 independent key interfaces: 5 independent keys can be connected for rapid, pressable voltage switching Either press and hold or shorten the circuit. The ends in the picture are all grounded contacts, connected on the circuit. Short Junction S1: it is set for key lock. After short connection, the switching voltage needs to be unlocked by pressing Press the key to turn on the power and re- unlock it when the power is back on. Short circuit F1: turn on the power to automatically probe the highest voltage and then maintain it at 5V. And the LED will show The LED corresponding to the voltage to be supported is all there is, otherwise it will blink. Short circuit F2: short circuit with F1, but maintaining the highest voltage supported by the output after voting. F1 and F2 are shortened at the same time: it is an infinite loop test. The voltage will switch from low to high cycle output The default voting and jumping time is 0.5 seconds, which can be modified by the following red ink method. Setup vote time or voltage jump when F1 and F2 are short - circuit: press and hold the key without turning on the power The first LED flashes. If the key is released, it will be unlocked. Otherwise, press straight When all the LEDs flicker, release the key to enter the time setting and the conversion time is reset to 0.5 seconds, then add 0 5 seconds and the LED will show Time needed (if you are not familiar with binary, you can count the times you added time) Increase it 30 times (maximum time is 15.5 seconds and LEDs are all on). The time settings will automatically pop up and the settings will be saved.
